ACL on packet tracer

1

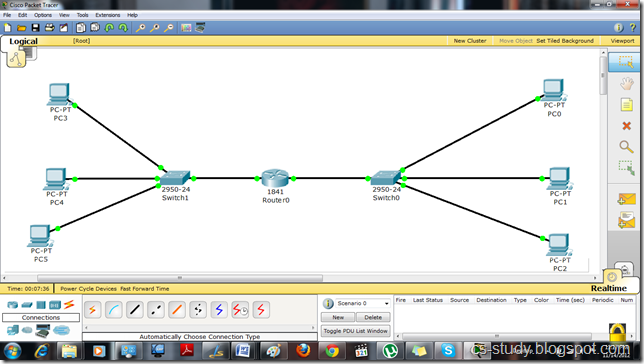

Let us apply ACL (Access Control List) on the topology. First, let us assign IP addresses and change the state of the interfaces.
2
Here, the status is change as shown in the following diagram.
3

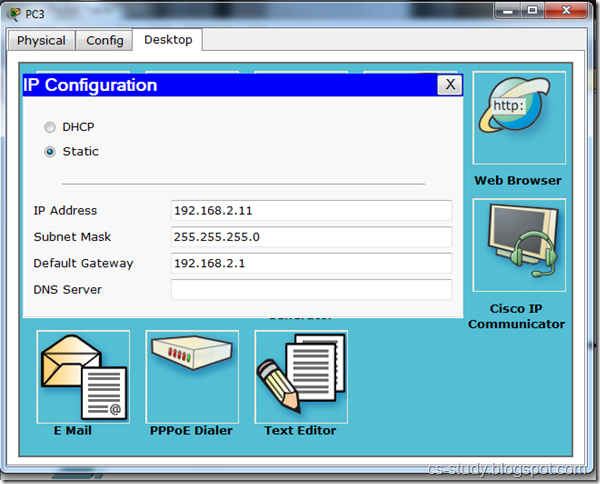

Then, we will have to assign IP addresses to the PCs.
 4
And the PC attach to the other interface. Please note the difference between default gateways. We assign fast Ethernet interface address to default gateway.
5

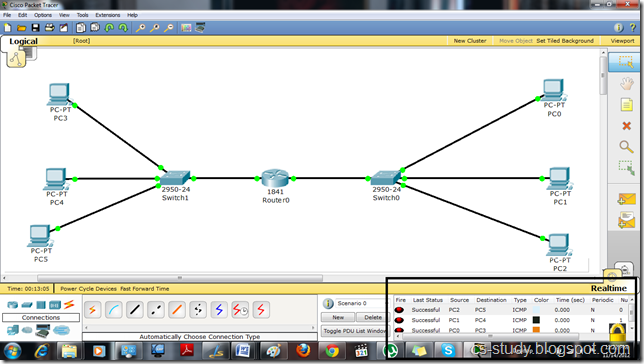

Thus, after applying IP addresses. We see that Packet transfer is successful.
6

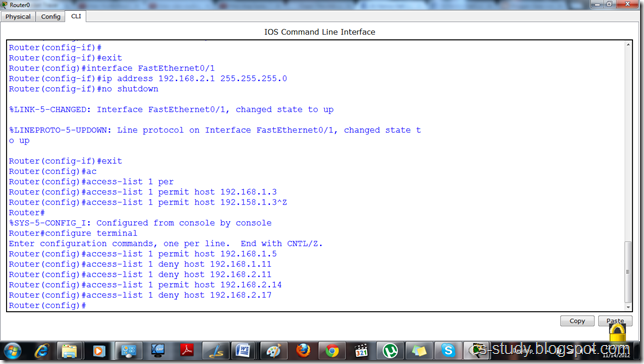

Let us apply ACL and permit and deny Hosts IP’s as we want. We are going to deny and permit certain hosts as follows.
a
Let us apply ACL and permit and deny Hosts IP’s as we want.
 7

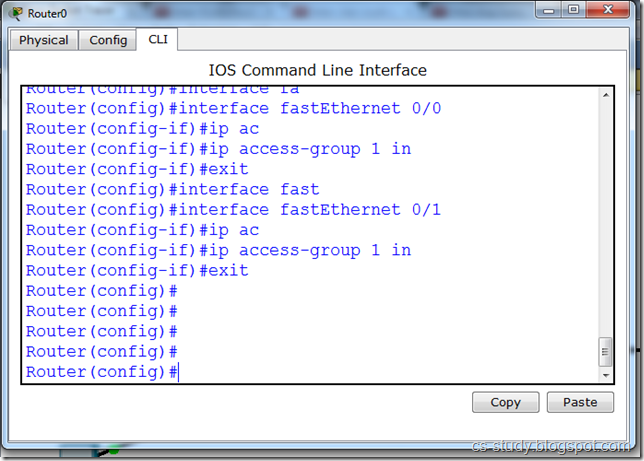

Then, we will have to tell the interface that which ACL to follow. ACL is uniquely identified with the number, in this case 1.
8

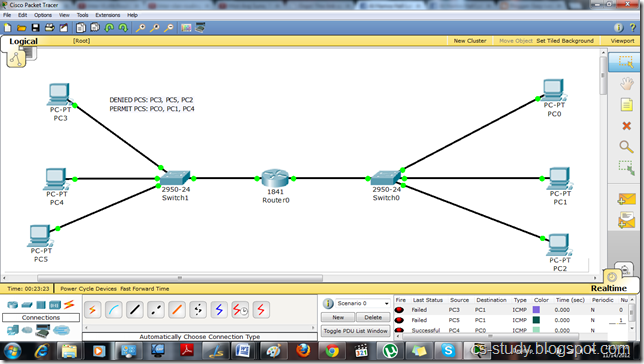

Now, you see that the denied will not be able to send the data while those who we permit can send packet.
 9
Similarly, in the bottom right corner you can see status.
10
