EIGRP on Packet Tracer

Hi everyone, today we are going to apply Enhanced Interior Gate Way Routing Protocol (EIGRP) on packet tracer.  Here are the basic set of commands that we can apply on router CLI mode in order to apply EIGRP on router.

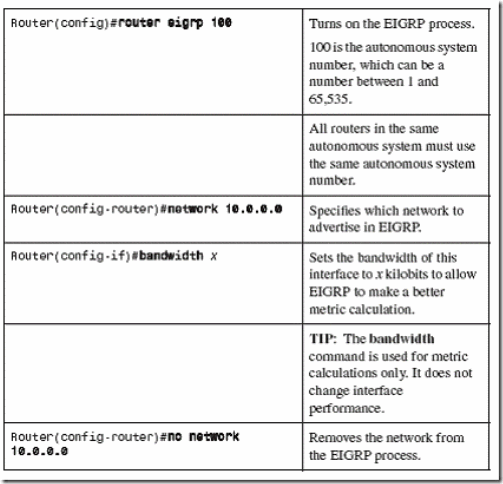

clip_image002

Also, look at some additional commands.

clip_image002[7]

Now, we are going to apply EIGRP on the following topology.

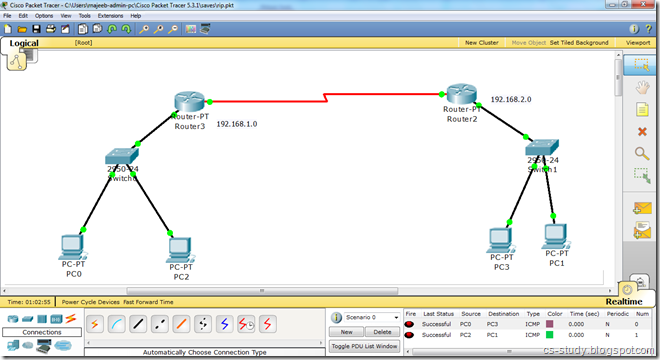

eigrp diagram

Now, after successfully applying IP addresses like in this topology, we will apply following commands.
Router(config)#router eigrp 10
Router(config-router)#network 192.168.1.0
Router(config-router)#network 192.168.2.0
Router(config-router)#exit

Apply the above set of commands on both routers like this.

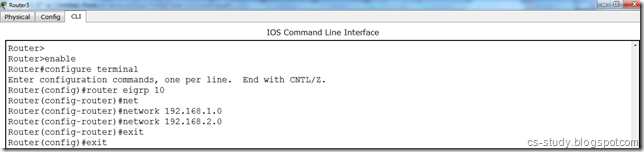

eigrp 1

And eigrp protocol has been applied on this topology. Notice the following command.
router eigrp 10
This number ‘10' is the process ID.
